AWS RDS MySQL

We will use Terraform to build an AWS RDS MySQL database which uses  the default VNC.

All the following operations have been completed on a Centos VM.

If the following git repository hasn’t been download already then execute the following:

$ cd ~/git
$ git clone https://github.com/paulhhallam/AWS-RDS-MySQLdb-terraform
$ cd AWS-RDS-MySQLdb-terraform

The files in this terraform configuration are :

rds.tf
sg.tf
README.md
vars.tf
provider.tf
secret.tf
vpc.tf

vars.tf

  • Define the variables

variable “region” {default = “us-east-2”}
variable “aws_instance_type” {
    default = “t2.micro”
}
variable “amis” {
    type = “map”
    default = {
        “us-east-1” = “ami-b374d5a5”
        “us-east-2” = “ami-5e8bb23b”
        “us-west-2” = “ami-4b32be2b”
    }
}

variable “RDSPWD” {
    default = “Password”
}

provider.tf

  • Define the instance type (t2.micro is free tier eligible)
provider "aws" {
access_key = "${var.access_key}"
secret_key = "${var.secret_key}"
region = "${var.region}"
version = "~> 1.30"
}
resource "aws_instance" "instance2" {
ami = "${var.amis[var.region]}"
instance_type = "${var.aws_instance_type}"
subnet_id = "${aws_subnet.instance2-Pub1.id}"
vpc_security_group_ids = ["${aws_security_group.instance2.id}"]
}

sg.tf

  • Define the security group
resource "aws_security_group" "instance2" {
name = "instance2"
description = "RDS db servers (terraform-managed)"
vpc_id = "${aws_vpc.instance2.id}"
ingress {
from_port = 0
to_port = 0
protocol = -1
cidr_blocks = ["0.0.0.0/0"]
}
# Allow all outbound traffic.
egress {
from_port = 0
to_port = 0
protocol = -1
cidr_blocks = ["0.0.0.0/0"]
}
tags {
Name = "instance2"
}
}

secret.tf

Defnie the variables that will be populated with the AWS access keys

variable "access_key" {}
variable "secret_key" {}

RDS.tf

  • Create the RDS MySQL database
resource "aws_db_instance" "instance2" {
skip_final_snapshot = true
engine = "mysql"
engine_version = "5.7.19"
identifier = "instance2"
instance_class = "db.t2.small"
multi_az = false
name = "instance2"
publicly_accessible = true
allocated_storage = 5
name = "instance2"
username = "meme"
password = "${var.RDSPWD}"
parameter_group_name = "default.mysql5.7"
db_subnet_group_name = "${aws_db_subnet_group.instance2.name}"
vpc_security_group_ids = ["${aws_security_group.instance2.id}"]
depends_on = ["aws_internet_gateway.instance2"]
tags {
Name = "instance2"
}
}

output "EndPoint" {
value = "${aws_db_instance.instance2.endpoint}"
}
output "Identifier" {
value = "${aws_db_instance.instance2.identifier}"
}
output "DB_Name" {
value = "${aws_db_instance.instance2.name}"
}
output "Port" {
value = "${aws_db_instance.instance2.port}"
}
output "MasterUsername" {
value = "${aws_db_instance.instance2.username}"
}

Execute

$ terraform init -var-file="/home/devopsdba/Documents/...../SECRET_variables.auto.tfvars"
:

$ terraform apply -var-file="/home/devopsdba/Documents/..../SECRET_variables.auto.tfvars"
:
Plan: 14 to add, 0 to change, 0 to destroy.
Do you want to perform these actions?
Terraform will perform the actions described above.
Only 'yes' will be accepted to approve.
Enter a value:

Entering YES will produce:

aws_vpc.instance2: Creating…
:
aws_db_instance.instance2: Creation complete after 4m5s (ID: instance2)
Outputs:

Apply complete! Resources: 14 added, 0 changed, 0 destroyed.
Outputs:
DB_Name = instance2
EndPoint = instance2.cffnmgekx1nd.us-east-2.rds.amazonaws.com:3306
Identifier = instance2
MasterUsername = meme
Port = 3306
$

We can now start MySQL Woirkbench and test the database

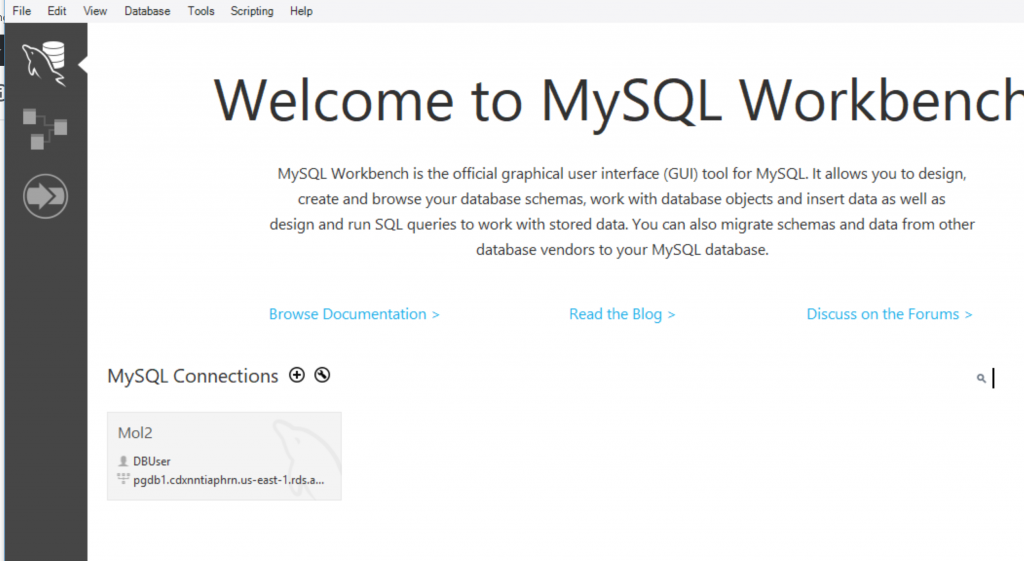

Select the plus symbol next to “MySQL Connections”

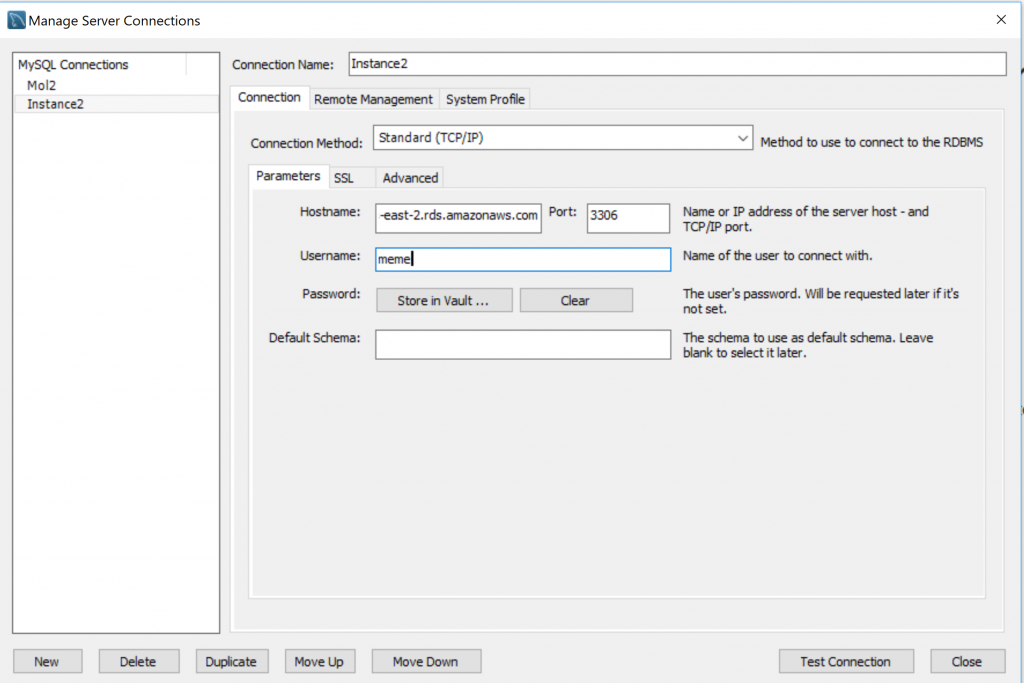

Enetr the conection details, Name, Hostname (Endpoint), port etc and select “Test Connection”

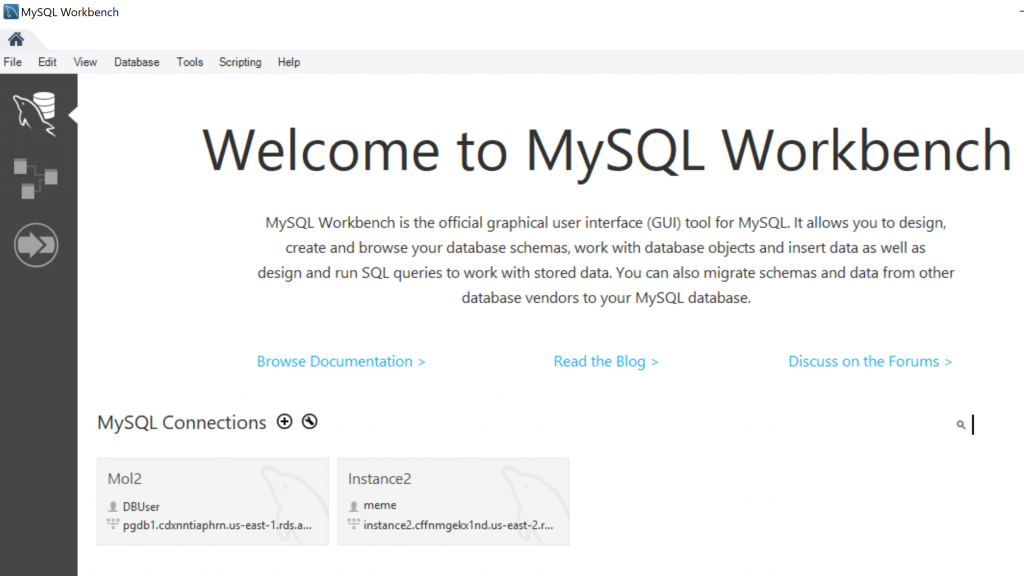

Select Insytance 2

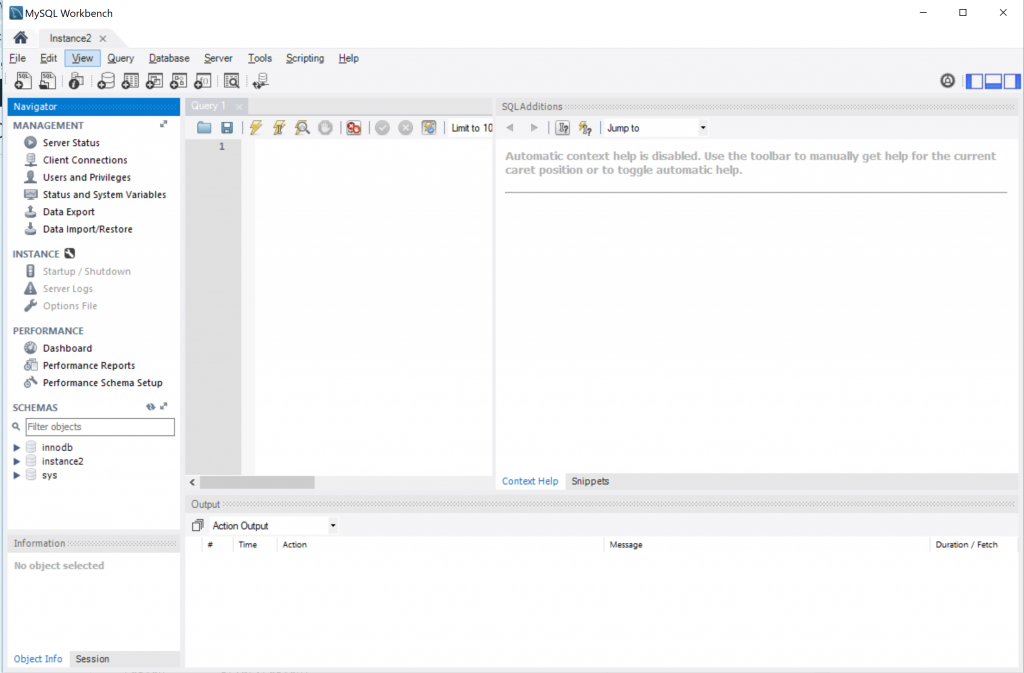

The MySQL database administration is available via the workbench.
