Create an AWS key pair

Key pairs

We are setting up a key pair as the next few examples use secure shell (ssh) access to configure the database and web server.

For

  • US East N Virginia we will use the name devopsdba1
  • US East Ohio we will use the name devopsdba2

The AWS documentation for key pairs is located at:

https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/ec2-key-pairs.html

and

Creating a Key Pair Using Amazon EC2.

Go to EC2 -> Key Pairs

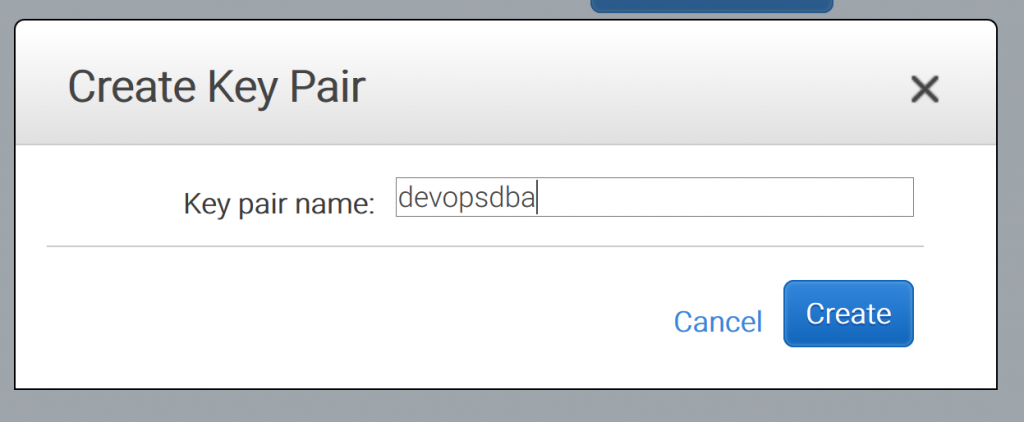

Select “Create Key Pair” and enter “devopsdba” as the name

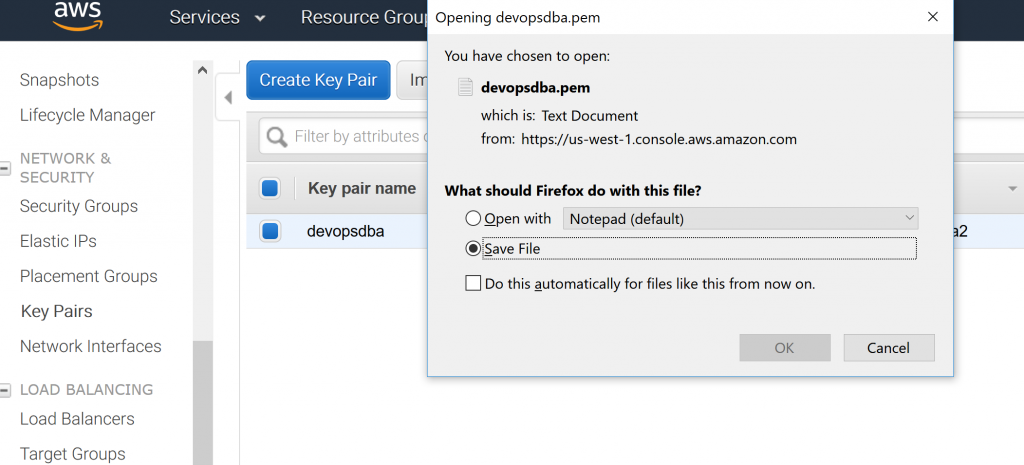

Select “Create” and then save the file devopsdba.pem

The devopsdba.pem file will contain a host of random characters e.g.

-----BEGIN RSA PRIVATE KEY-----
MIIEowIBAAKCAQEAh+iHFd44fkGUD0ZcogzryU7gJ5FX8IBFrEuLz2v3e5/BXdj+SMmScxl8Iwen
aw7IlvM2Ri9UkTG77ewogIArj4+LobbbCCMpCR/KGigCSKZEths2dSkrCAHqtnwXkJ2G/VTtICzC
:
:
:
ERFLJd2bQHYxuhfxLLoa4tdtg5cLArLTQO2QT74IuG/1AoGBAIyO90DBx1gPz2HfwPZhO9vlY0qo
Gsc1ZUCDoHZzIlWUBhv3B0NvPCv9ecxWE3IVgBTcOWI+/zn49uaHkeIK1GxBIJ79iIph0KbMMZeb
TOafwR5fzuUa9/2+9ECCml3AIi06Nd7EDbPHLcjujaiccxenhvjRdpPwRs3OSo1x1U5n
-----END RSA PRIVATE KEY-----

This file should be saved as this will need to be used if you wish to connect to the instances.
