Kubernetes on VirtualBox

Download Ubuntu Desktop (18.04.3 LTS) from https://ubuntu.com/download/desktop

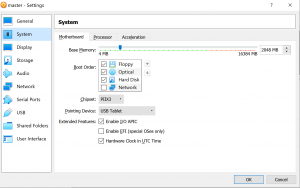

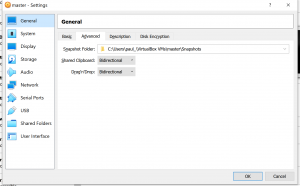

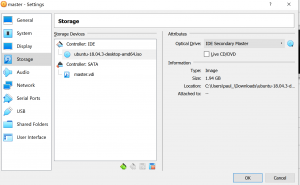

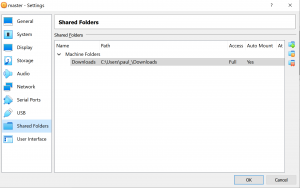

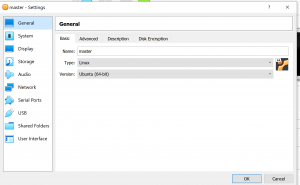

Create a VirtualBox node called master using the downloaded image.

START the ubuntu server and accept all defaults during the installation ( although I did change the language to UK English).

Hostname “master”Username “paul”
Password “paul”
Login automatically selected.

Start the system and open a terminal

$ swapoff -a
$ nano /etc/fstab

Comment out the swapfile line

Install docker

$ apt install docker.io

$ systemctl enable docker

$ apt install net-tools

Shutdown & Clone

Clone the machine to two other systems, slave1 and slave2. Make sure you choose to generate new mac addresses for each clone.

For each clone:

  1. $ sudo su
  2. $ nano /etc/hostname

Change master to slave1 or slave2

Change master to slave1 or slave2

  • $ nano /etc/hosts

Add the routes to the hosts:

192.168.0.124 master

192.168.0.125 slave1

192.168.0.126 slave2

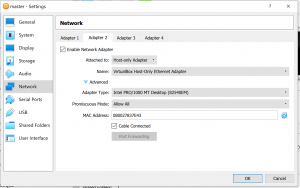

Shutdown all hosts and add a second network device:

Restart the hosts.

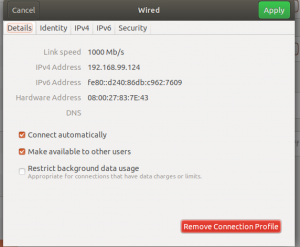

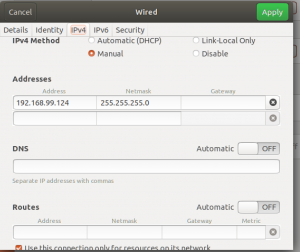

Set the new network as

Repeat for slave1 and slave2 as 192.168.99.121 and 192.168.99.122 respectively

Update the /etc/hosts file on each machine

192.168.99.124 kbm

192.168.99.125 kbs1

192.168.99.126 kbs2

Check all machines are reachable

$ ping kbm

$ ping kbs1

$ ping kbs2

On each host

From: https://kubernetes.io/docs/tasks/tools/install-kubectl/

sudo update-alternatives –set iptables /usr/sbin/iptables-legacy

sudo update-alternatives –set ip6tables /usr/sbin/iptables-legacy

sudo update-alternatives –set arptables /usr/sbin/arptables-legacy

sudo update-alternatives –set ebtables /usr/sbin/ebtables-legacy

sudo apt-get update && sudo apt-get install -y apt-transport-https

apt install curl

curl -s https://packages.cloud.google.com/apt/doc/apt-key.gpg | sudo apt-key add –

echo “deb https://apt.kubernetes.io/ kubernetes-xenial main” | sudo tee -a /etc/apt/sources.list.d/kubernetes.list

cat << EOF > /etc/apt/sources.list.d/kubernetes.list

deb http://apt.kubernetes.io/ kubernetes-xenial main

EOF

sudo apt-get update

sudo apt-get install -y kubectl

sudo apt-get install -y kubelet kubeadm kubectl

sudo apt-mark hold kubelet kubeadm kubectl

apt-get install -y kubelet=1.15.4-00 kubeadm=1.15.4-00 kubectl=1.15.4-00 docker.io

ON MASTER

$ sudo kubeadm init

OR

$ sudo kubeadm init –apiserver-advertise-address=192.168.99.124 –pod-network-cidr=192.168.0.0/16

:

:

:

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube

  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config

  sudo chown $(id -u):$(id -g) $HOME/.kube/config

You should now deploy a pod network to the cluster.

Run “kubectl apply -f

[podnetwork]

.yaml” with one of the options listed at:

https://kubernetes.io/docs/concepts/cluster-administration/addons/

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 192.168.99.124:6443 –token a8kfye.dqb1ee5oyn76zmhp \

    –discovery-token-ca-cert-hash sha256:aafefd10048cba3c3ab530cdb1ecb39f3a62b4abfc1350770147249b92da03d9

root@master:/home/paul#

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube

  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config

  sudo chown $(id -u):$(id -g) $HOME/.kube/config

You should now deploy a pod network to the cluster.

Run “kubectl apply -f

[podnetwork]

.yaml” with one of the options listed at:

https://kubernetes.io/docs/concepts/cluster-administration/addons/

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 192.168.0.124:6443 –token n342j4.d1mvtihlg96g3p6q \

    –discovery-token-ca-cert-hash sha256:fed729348d4c421bc12b39f482efaf520ff43d541b65c3a6550856aa6a17c13f

paul@master:~$ mkdir -p $HOME/.kube

paul@master:~$ sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config

paul@master:~$ sudo chown $(id -u):$(id -g) $HOME/.kube/config

paul@master:~$ kubectl apply -f https://docs.projectcalico.org/v3.11/manifests/calico.yaml

kubectl apply -f https://docs.projectcalico.org/master/getting-started/kubernetes/installation/hosted/calico.yaml

paul@master:~$ watch kubectl get pods –all-namespaces

paul@master:~$ kubectl taint nodes –all node-role.kubernetes.io/master-

paul@master:~$ kubectl get nodes -o wide

Kubectl describe pods

sysctl net.bridge.bridge-nf-call-iptables=1

kubectl apply -f “https://cloud.weave.works/k8s/net?k8s-version=$(kubectl version | base64 | tr -d ‘\n’)”

paul@master:~$ kubectl get nodes

NAME     STATUS   ROLES    AGE   VERSION

master   Ready    master   23m   v1.17.0

On slave1 and slave2

sudo kubeadm join 192.168.99.124:6443 –token a8kfye.dqb1ee5oyn76zmhp \

    –discovery-token-ca-cert-hash sha256:aafefd10048cba3c3ab530cdb1ecb39f3a62b4abfc1350770147249b92da03d9

TEST KUBERNETES

https://github.com/ACloudGuru-Resources/Course_Kubernetes_Deep_Dive_NP.git

Cd ~/Course_Kubernetes_Deep_Dive_NP/lesson-networking

kubectl apply -f ping-deploy.yml

kubectl label node slave1 node-role.kubernetes.io/worker=slave1

kubectl label node slave2 node-role.kubernetes.io/worker=slave2

$ kubectl get nodes

NAME     STATUS   ROLES           AGE   VERSION

master   Ready    master          87m   v1.17.0

slave1   Ready    worker          70m   v1.17.0

slave2   Ready    slave2,worker   70m   v1.17.0

Add Label

kubectl label node node-role.kubernetes.io/=

Remove label

kubectl label node node-role.kubernetes.io/-
